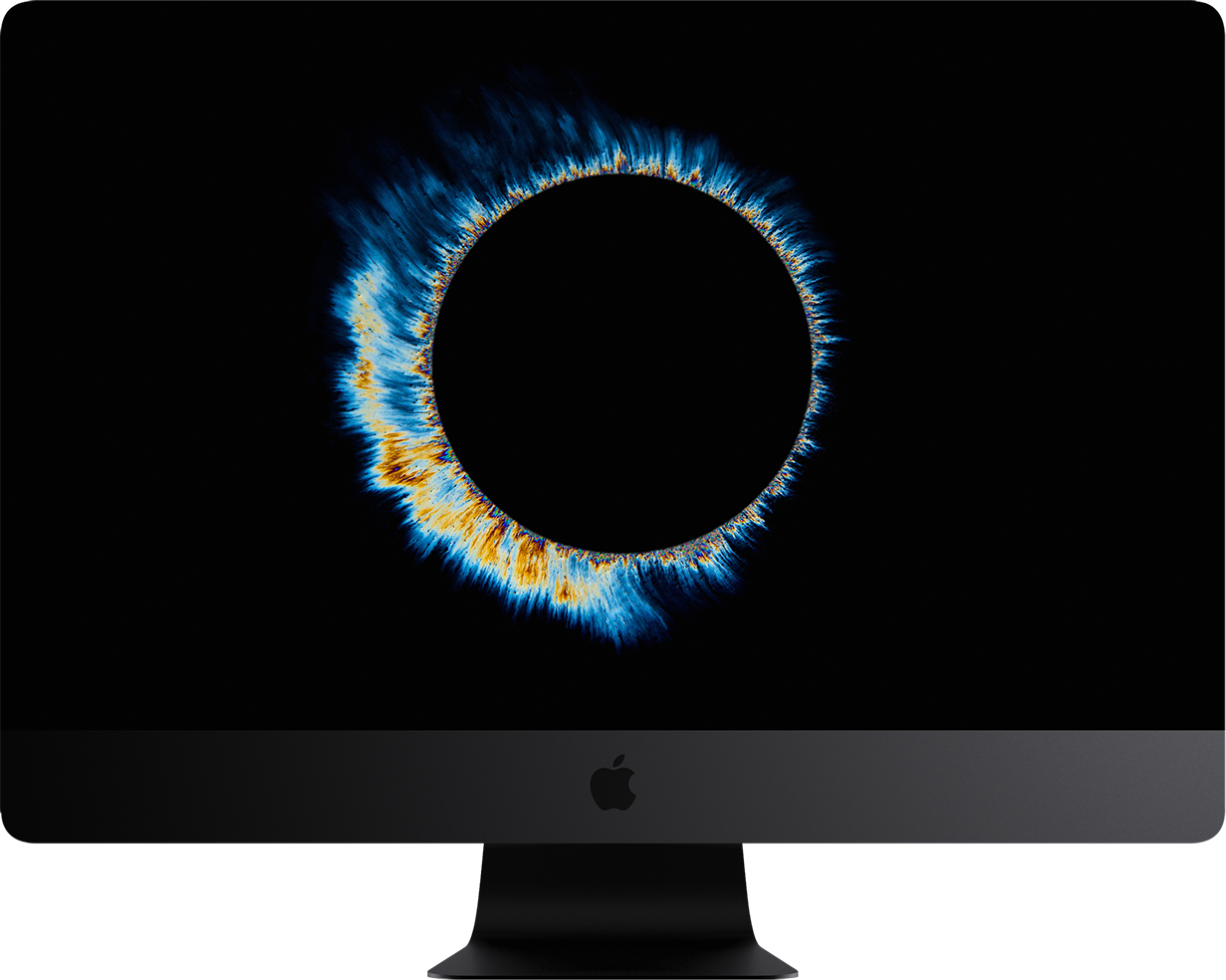

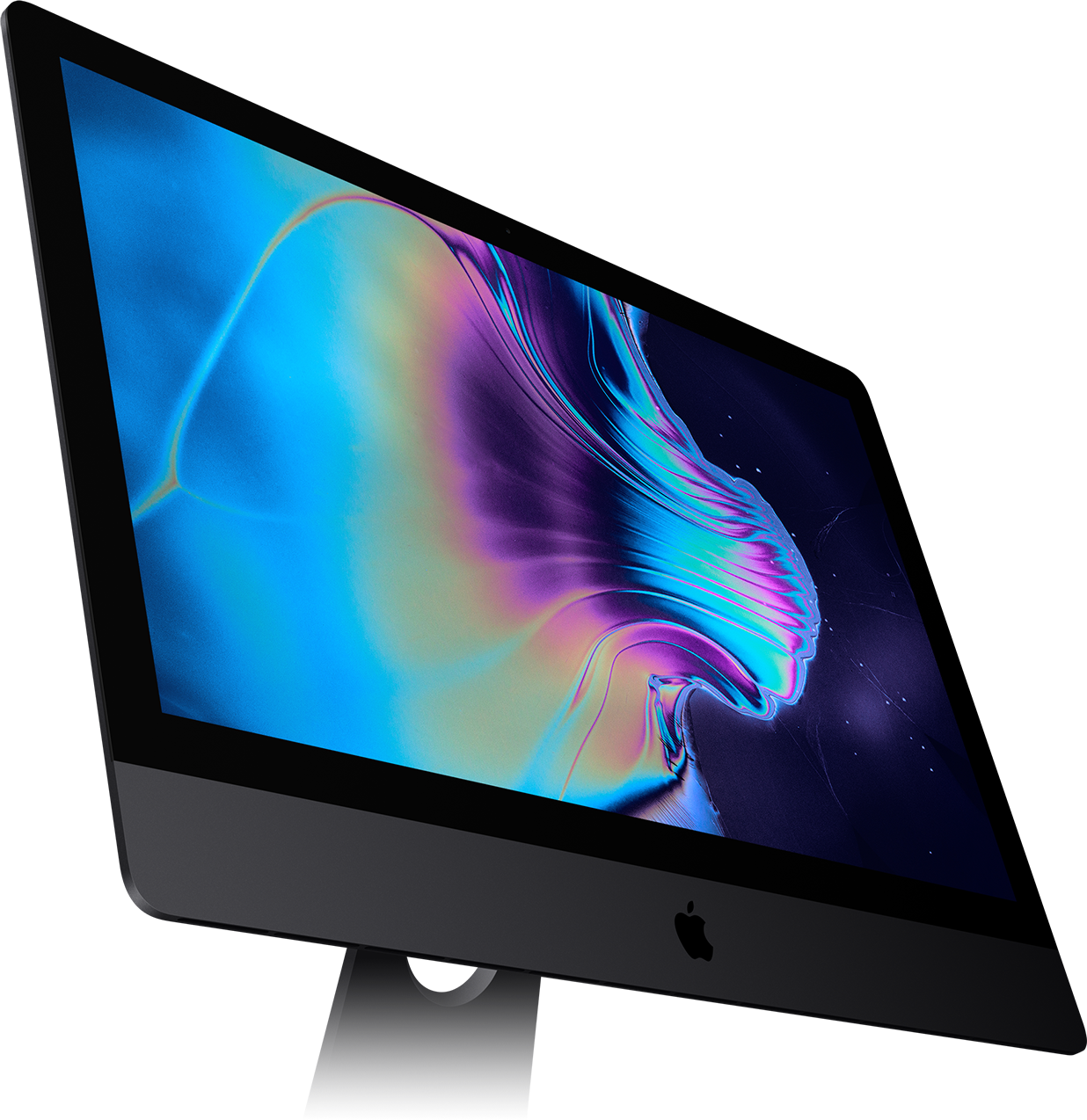

Power to the pro.
Up to 18 cores in an iMac. No, that’s not a typo.
An iMac with 4 cores is remarkable enough. But an iMac with 10, 14, or 18 cores is an entirely different creature. Add Turbo Boost speeds up to 4.5GHz, and iMac Pro has the power and flexibility to balance multicore processing with single-thread performance. With AVX-512 vector instructions and an advanced cache architecture, the processor handles even more data — even more quickly. Which means you can render images, edit up to 8K video, manipulate photos, create real-time audio effects, or compile your next five-star app — all at lightning speed.
10-, 14-, or 18-core
Xeon processor
Turbo Boost up to 4.5GHz
Up to 42MB cache

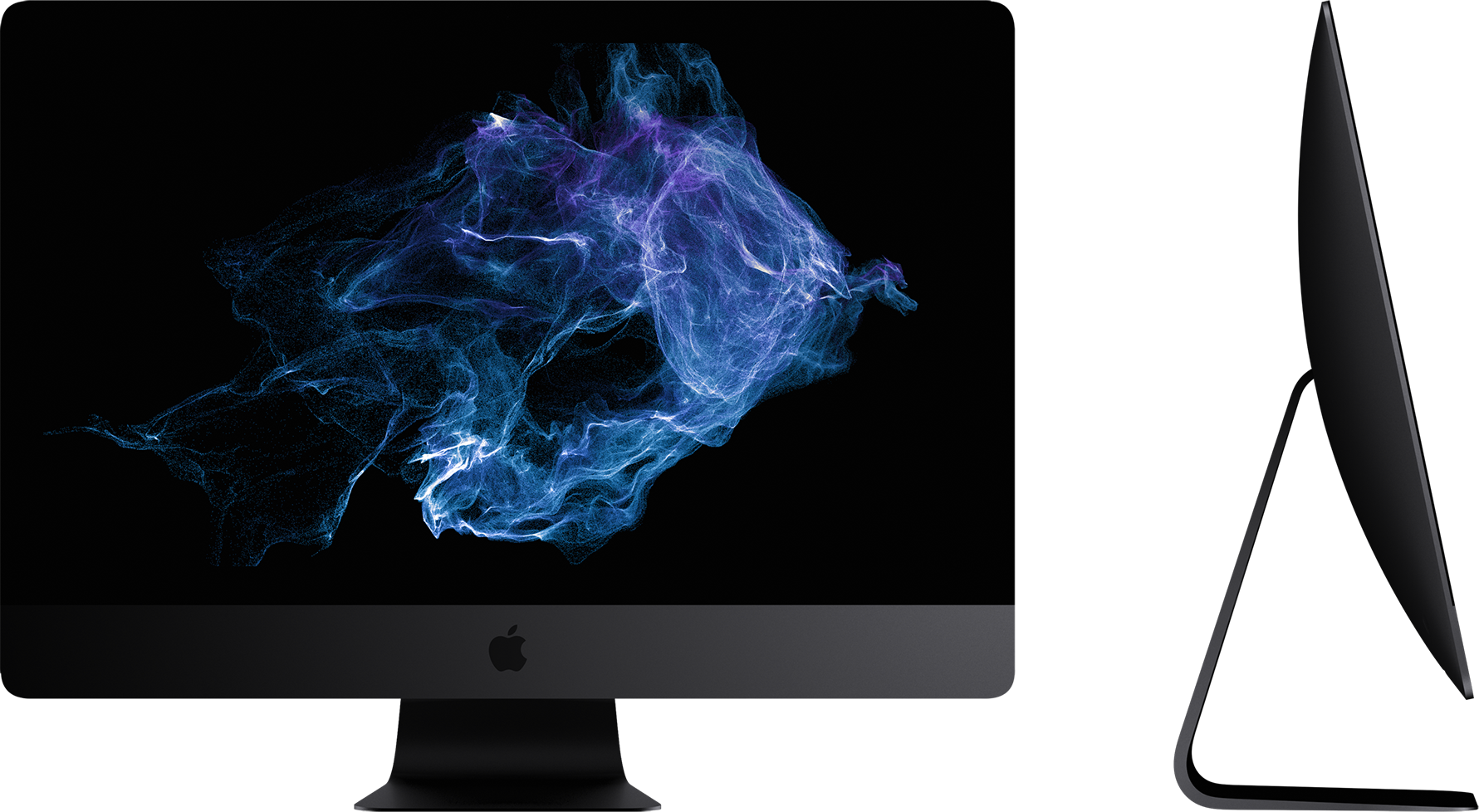

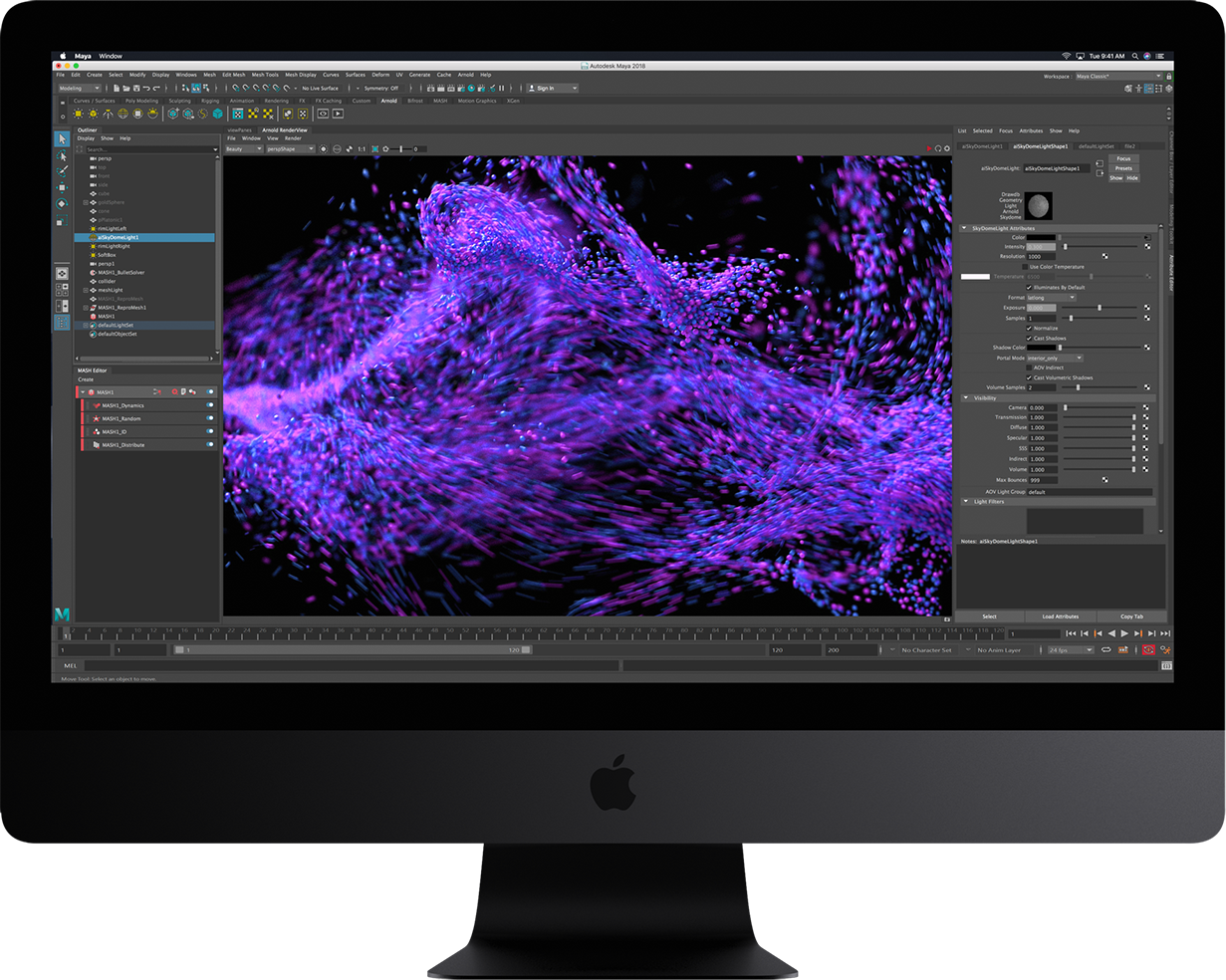

Particle simulation? Elementary.
Billowing smoke. Torrential rain. A wheat field in the wind. With up to 18 cores and Hyper-Threading, iMac Pro lets you build and render particle systems of all kinds — static or animated, 2D or 3D — with ease.

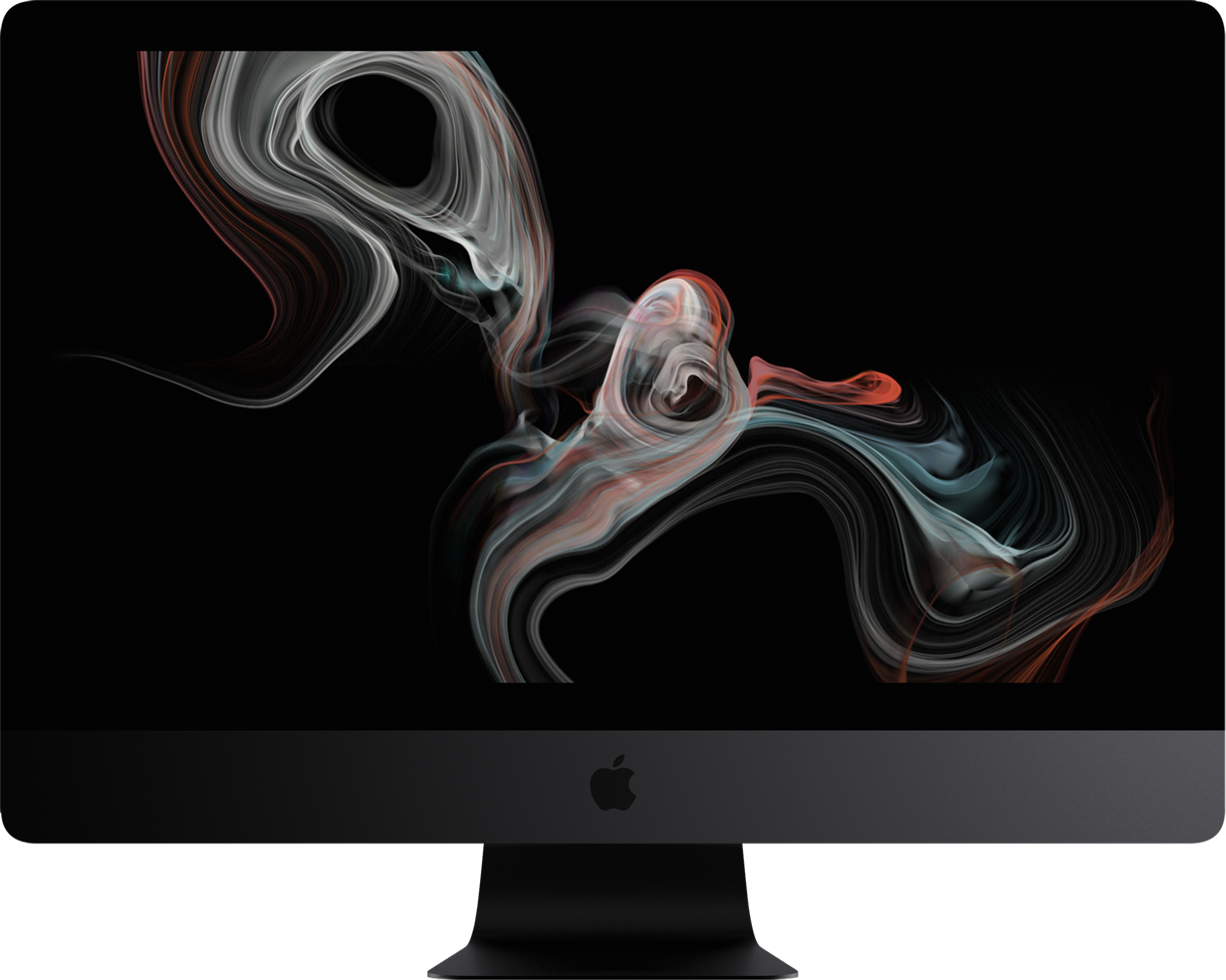

Vega graphics.
The beast behind the beauty.
Featuring Radeon Pro Vega graphics, iMac Pro delivers a stunningly powerful graphics standard. The Vega graphics architecture features up to 16GB of on-package High Bandwidth Memory, which helps deliver a major jump in performance. This translates to higher frame rates, real-time 3D rendering, more lifelike special effects, and gameplay at max settings. It also supports both single- and half-precision computing, so operations that don’t require a full 32 bits of precision can be performed twice as fast. How fast? Up to 24 teraflops fast.
On-package HBM2 replaces external VRAM, so the GPU can fetch data at up to 512GB/s.
Radeon Pro Vega
56, 64, or 64X
Up to 12 teraflops
single precision
Up to 24 teraflops
half precision
8GB or 16GB High
Up to 512GB/s
memory bandwidth

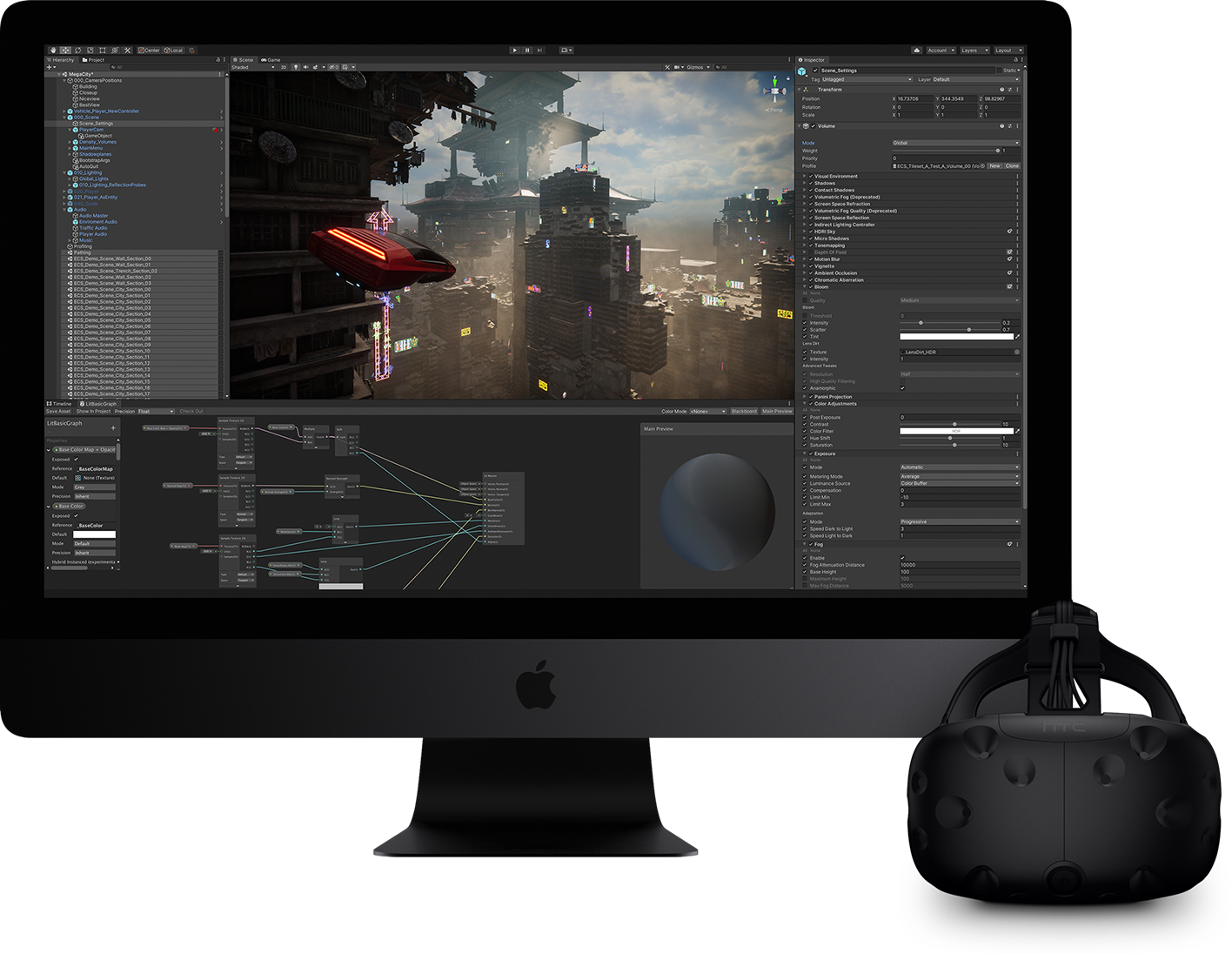

Phenomenally fluid 3D creation.
With the Vega 64X GPU, iMac Pro lets you create 3D environments up to two times faster,¹ then render them in stunning photorealistic detail.
Strength in mumbers.
iMac Pro is optimized for performance across the board. Here’s how it compares to the quad-core 27-inch iMac with Radeon Pro 580.
More memory for massive projects.
With four channels of memory, iMac Pro can now accommodate up to 256GB. So you can visualize, simulate, and render huge 3D models. Create multiple test environments for cross-platform development. And keep numerous apps open at the same time. It’s all powerful. For all the things you want to do.
Up to 256GB
2666MHz DDR4 ECC
High-performance storage.
Load faster. Launch faster.
Up to 4TB of all-flash storage lets you work on large 4K and HD projects regardless of codec. And with up to 3GB/s throughput, loading huge files and launching apps is faster than ever.
Up to 4TB SSD13
3.3GB/s write performance
2.8GB/s read performance
Apple T2 Security Chip. Enhanced integration and security.
Every iMac Pro is equipped with the Apple T2 Security Chip, Apple’s second-generation custom Mac silicon. By redesigning and integrating several controllers found in other Mac systems — like the system management controller, image signal processor, audio controller, and SSD controller — the T2 Security Chip delivers robust capabilities to the Mac. For instance, the image signal processor works with the FaceTime HD camera to enable enhanced tone mapping, improved exposure control, and face detection–based auto exposure and auto white balance. The T2 also makes iMac Pro even more secure, thanks to a Secure Enclave coprocessor that provides the foundation for encrypted storage and secure boot capabilities. The data on your SSD is encrypted using dedicated AES hardware with no effect on the SSD’s performance, while keeping the Intel Xeon processor free for your compute tasks. And secure boot ensures that the lowest levels of software aren’t tampered with and that only operating system software trusted by Apple loads at startup.

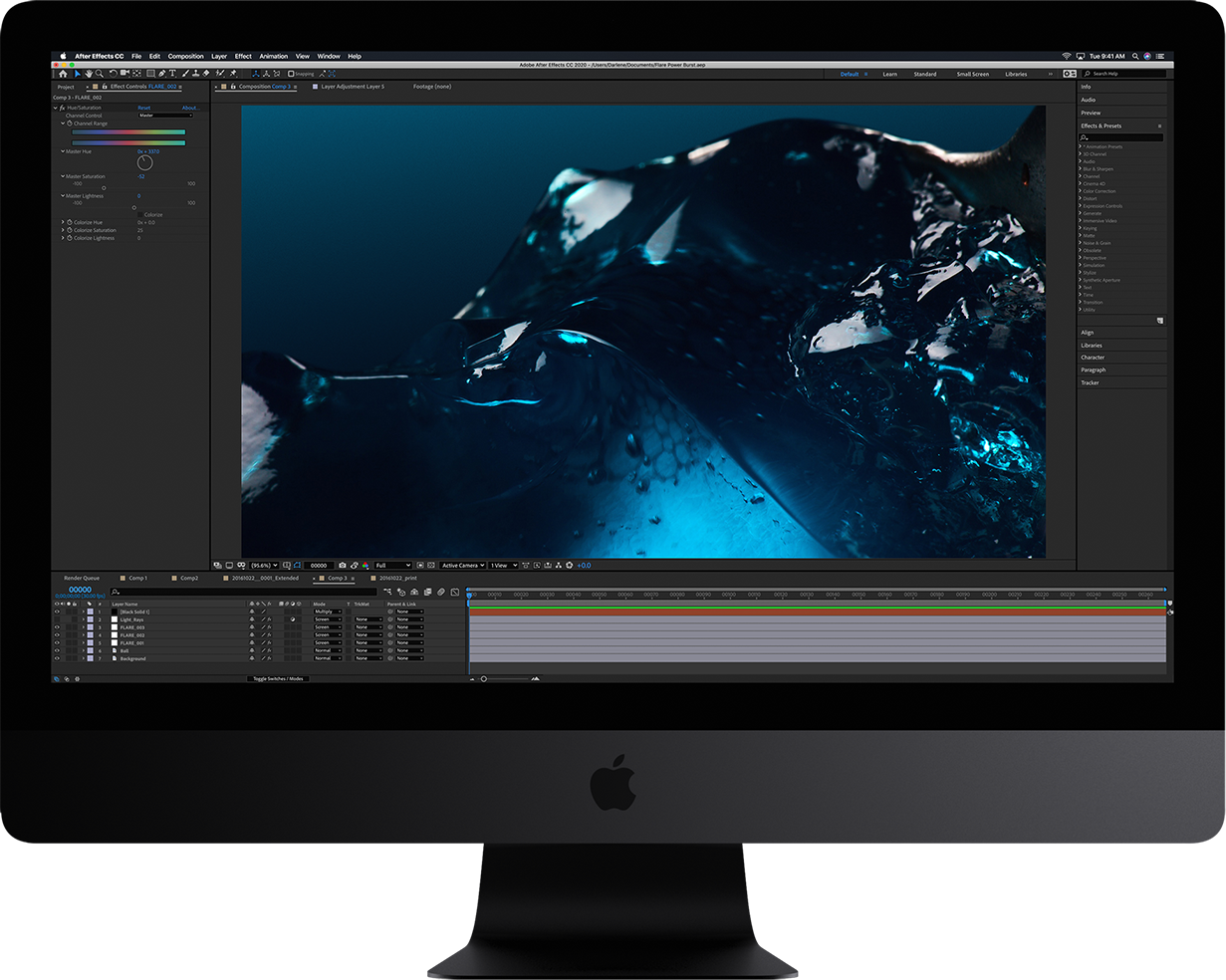

Video performance artist.
iMac Pro has the bandwidth to effortlessly handle multiple streams of video. And with up to 4TB of all-flash storage, saving and loading humongous projects is all in a moment’s work.

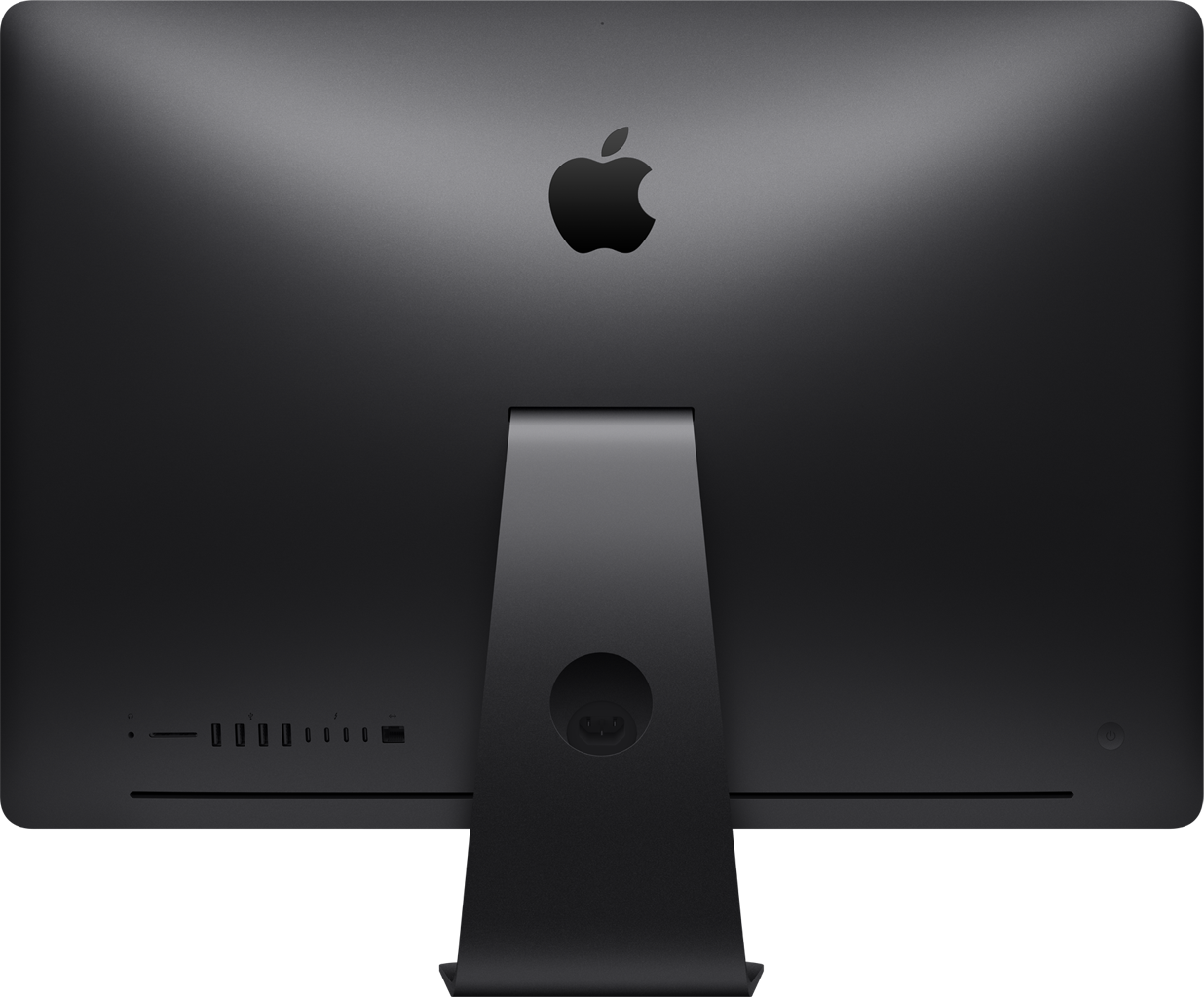

Serious I/O. For serious work.
As you’d expect from a pro machine, there are plenty of high-speed ports to create a high-performance workstation. Four Thunderbolt 3 ports let you connect two 5K monitors — for 44 million pixels total — and transfer data at a blazing 40Gb/s. And there’s something you probably didn’t expect in an iMac: 10Gb Ethernet. So sharing files between desktops, or working with high-performance network storage, is up to 10 times faster.
40GB/s Thunderbolt 3
Four Thunderbolt 3 ports. Supports USB 3.1 and DisplayPort video output over USB-C.
Up to 44 million pixels
5K display with the option to connect two additional 5K displays.
10GB Ethernet
Also supports Nbase-T industry-standard 1Gb, 2.5Gb, and 5Gb link speeds.

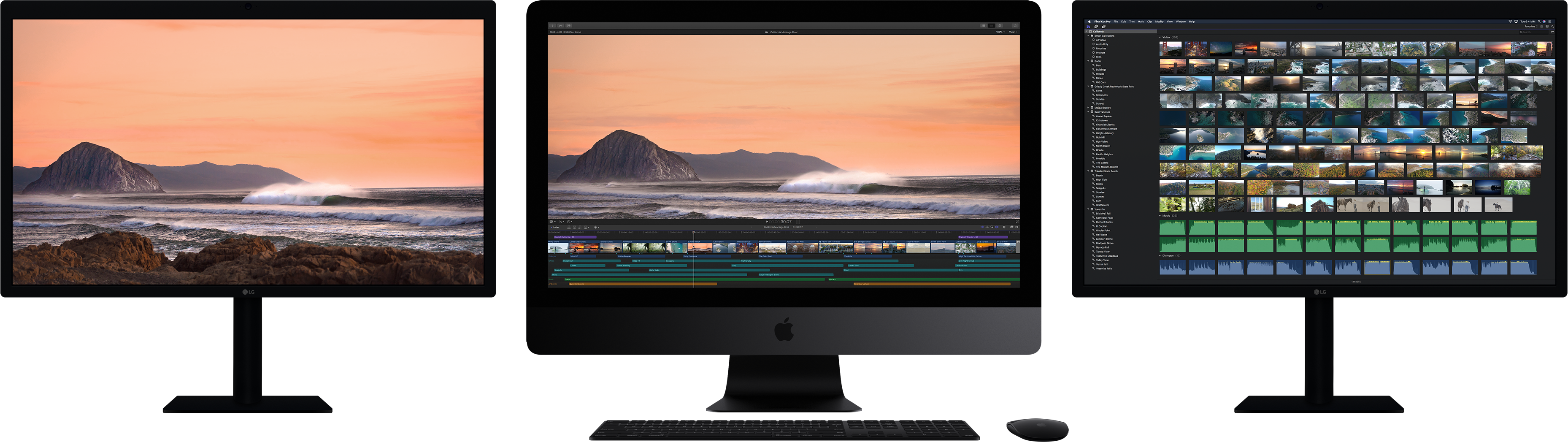

See your work on big screens.
Create a powerful workstation by connecting two RAID systems and two 5K displays to the four Thunderbolt 3 ports. Then see your work on a 44-million-pixel canvas.

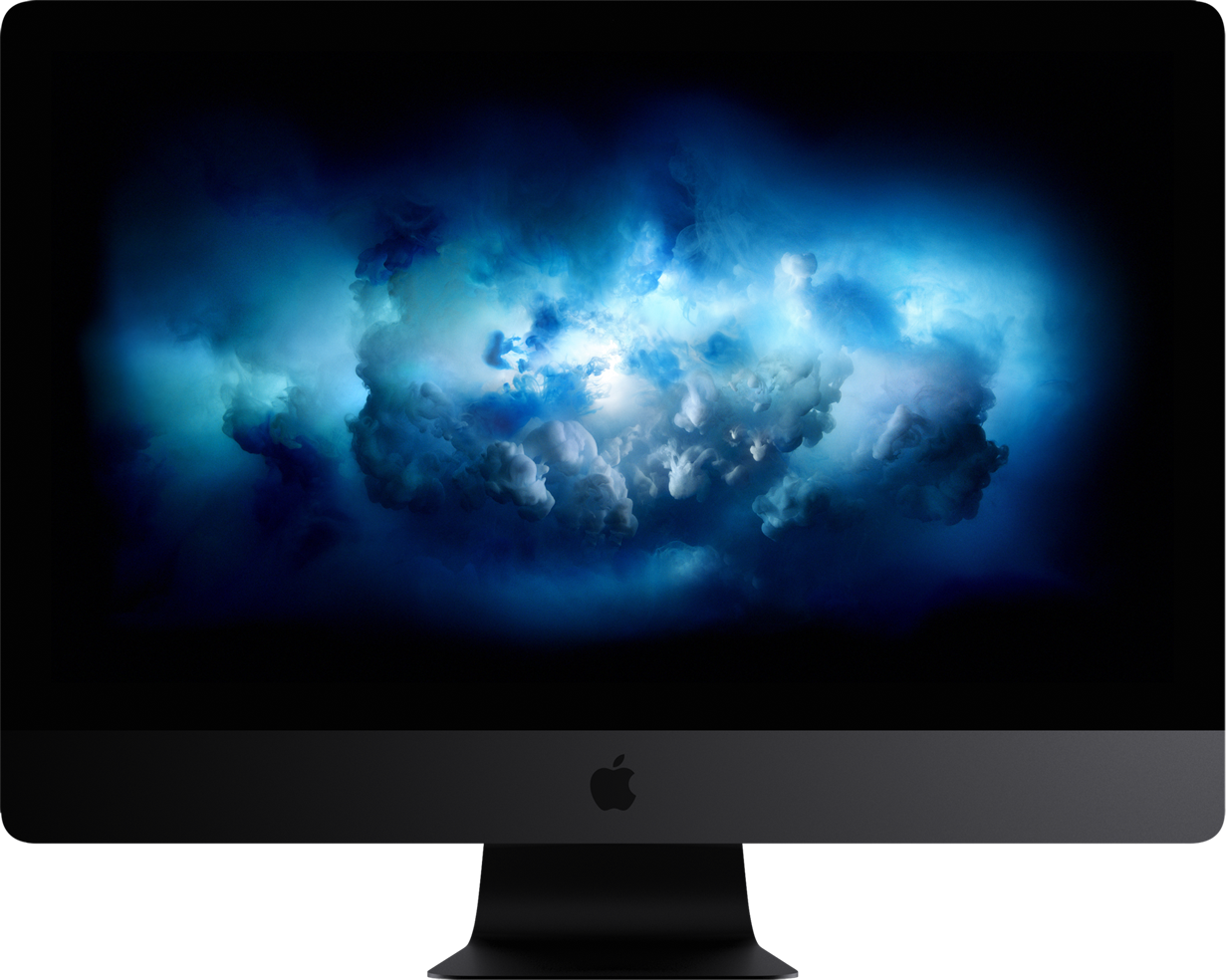

Retina 5k display. Dream in a billion colors.
It almost goes without saying: If it’s an iMac, it will have a gorgeous display. And iMac Pro doesn’t disappoint. Its 27-inch Retina screen is crisp and bright, with 500 nits of brightness across its 14.7 million pixels. It’s as if the sleek, all-in-one design disappears behind the stunning screen — so you can focus on your content. Along with P3 color and support for a billion colors, iMac Pro delivers spectacular, true-to-life images.
500 nits
P3 color gamut
One billion colors
Supports 10-bit spatial and temporal dithering.

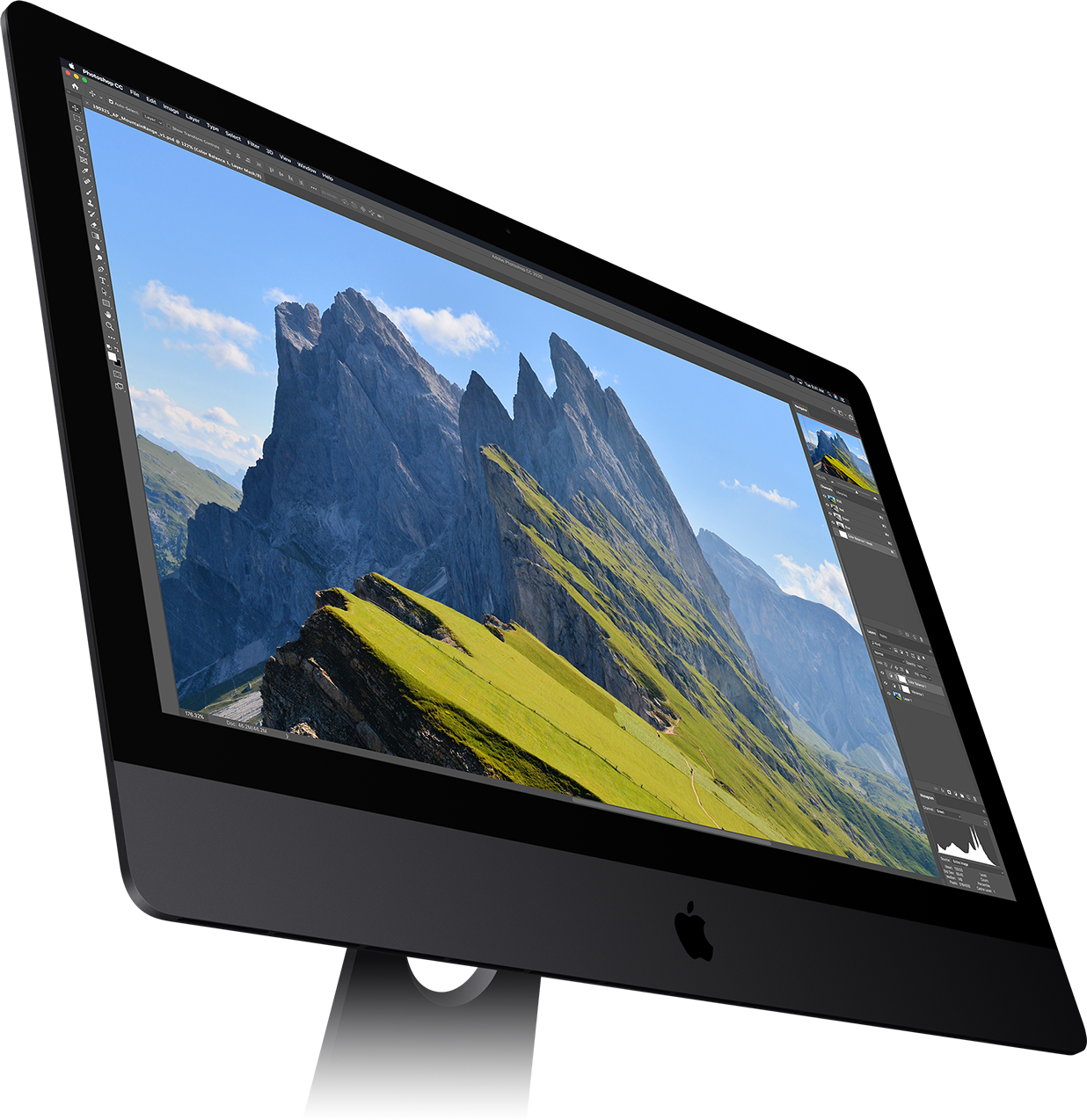

Reveal your true colors.
A billion colors on your display means every photo appears just the way it was shot, with supersmooth gradients and vastly reduced banding.
All-in-one design. More creative freedom.
iMac Pro puts the power of a workstation behind a stunning Retina 5K display, in a sleek enclosure just 5 mm wide at its edge. With your whole system powered by a single cable, your workspace stays free of clutter. It’s a beautifully efficient design that lets you focus all your attention on what you’re creating — not what you’re creating with.

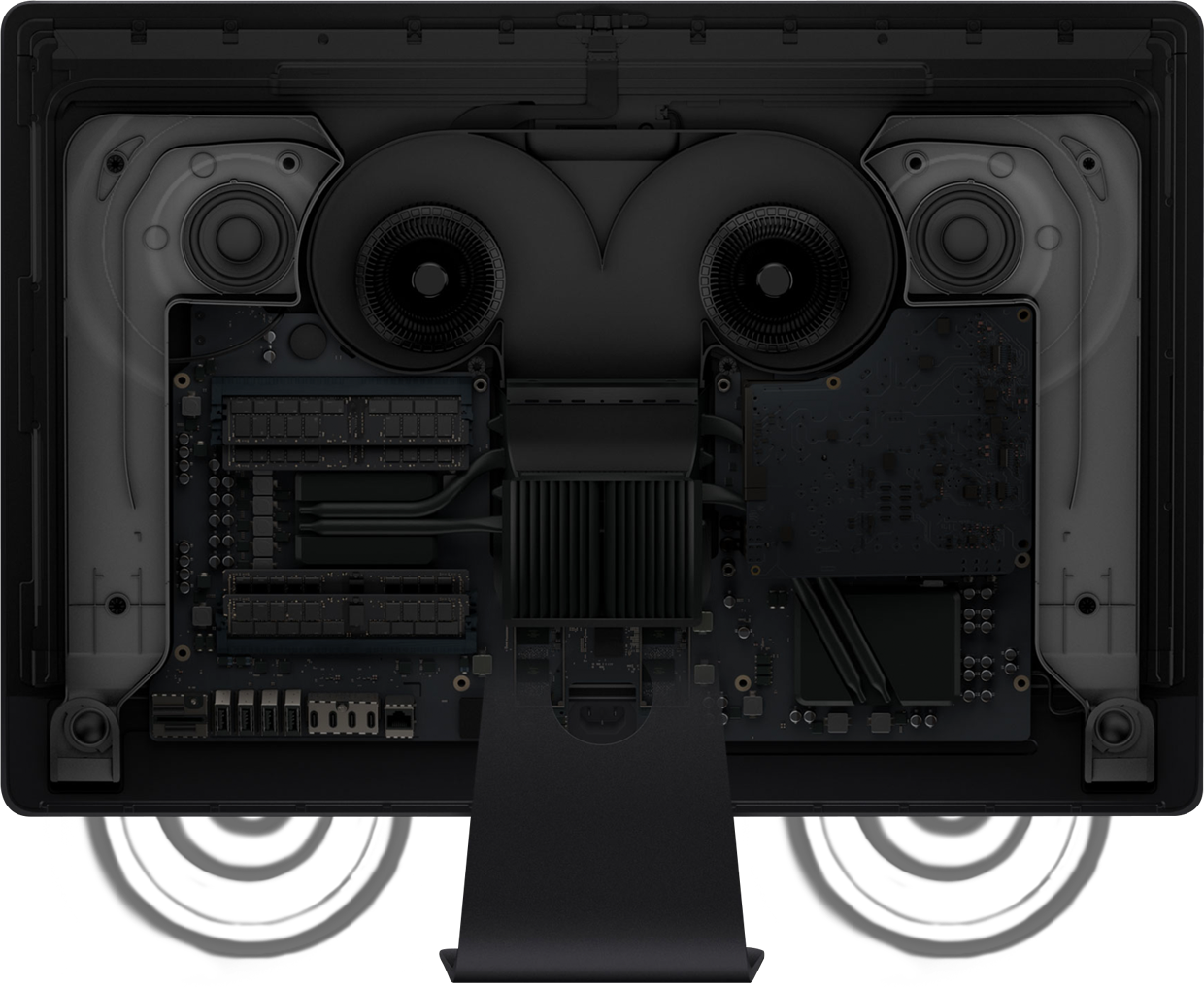

Advanced thermal management. Cool.
Packing all that performance into such a slim all-in-one design required a new approach to cooling the system. Apple redesigned the thermal architecture of iMac Pro with innovative dual blowers, a high-capacity heatsink, and extra venting. The result? Almost 75 percent more airflow and an 80 percent increase in system thermal capacity. Which lets iMac Pro handle 500 watts — while remaining quiet on your desk.
Dynamic speakers. Make some noise.
The enhanced stereo speakers in iMac Pro deliver broad frequency response, rich bass, and impressive volume. So you’ll be able to hear that crashing cymbal, multilayered effect, or sample-based sound, all with remarkable fidelity. And with four beamforming mics, your voice is heard loud and clear over any background noise.

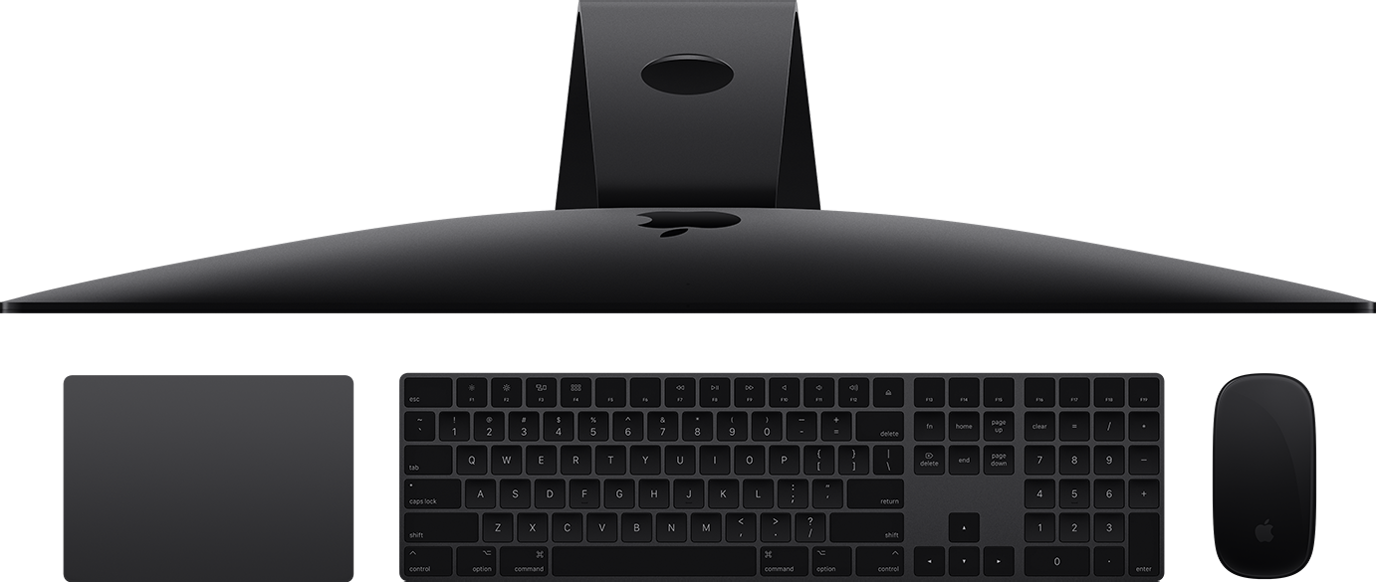

Accessories with a dark side.
You even get space gray accessories to match your iMac Pro — all wireless, rechargeable, and beautiful. The Magic Keyboard includes a numeric keypad, and to go with it you can choose either the Magic Mouse 2 or the Magic Trackpad 2.
iMac Pro
1. Testing conducted by Apple in February 2019 using preproduction 2.3GHz 18-core Intel Xeon W-based 27-inch iMac Pro systems with 128GB of RAM and Radeon Pro Vega 64X graphics with 16GB of HBM2; and 4.2GHz quad-core Intel Core i7-based 27-inch iMac systems with Radeon Pro 580 graphics with 8GB of VRAM. Tested with Cinema 4D R20 using a 1.98GB scene; polygon count = 60 million. Performance tests are conducted using specific computer systems and reflect the approximate performance of iMac Pro and iMac.
2. Testing conducted by Apple in November 2017 using preproduction 2.3GHz 18-core Intel Xeon W-based 27-inch iMac Pro systems with 128GB of RAM and preproduction 3.0GHz 10-core Intel Xeon W-based 27-inch iMac Pro systems with 64GB of RAM, both configured with Radeon Pro Vega 64 graphics with 16GB of HBM2; and 4.2GHz quad-core Intel Core i7-based 27-inch iMac systems with Radeon Pro 580 graphics with 8GB of VRAM. Autodesk Maya 2018 tested using a 399.6MB scene. Performance tests are conducted using specific computer systems and reflect the approximate performance of iMac Pro and iMac.
3. Testing conducted by Apple in November 2017 using preproduction 2.3GHz 18-core Intel Xeon W-based 27-inch iMac Pro systems with 128GB of RAM and configured with Radeon Pro Vega 64 graphics with 16GB of HBM2; and 4.2GHz quad-core Intel Core i7-based 27-inch iMac systems with Radeon Pro 580 graphics with 8GB of VRAM. Tested with Cinema 4D R19.024 using a 1.98GB scene; polygon count = 60 million. Performance tests are conducted using specific computer systems and reflect the approximate performance of iMac Pro and iMac.
4. Testing conducted by Apple in November 2017 using preproduction 2.3GHz 18-core Intel Xeon W-based 27-inch iMac Pro systems with 128GB of RAM and preproduction 3.0GHz 10-core Intel Xeon W-based 27-inch iMac Pro systems with 64GB of RAM, both configured with Radeon Pro Vega 64 graphics with 16GB of HBM2; and 4.2GHz quad-core Intel Core i7-based 27-inch iMac systems with Radeon Pro 580 graphics with 8GB of VRAM. Testing performed using Xcode 9.1 (9B55), ninja (v.1.7.2 tag), swift (swift-4.0.2-RELEASE tag), swift-clang (swift-4.0.2-RELEASE tag), swift-llvm (swift-4.0.2-RELEASE tag), swift-cmark (swift-4.0.2-RELEASE tag), swift-compiler-rt (swift-4.0.2-RELEASE tag), and CMake 3.9.4. Performance tests are conducted using specific computer systems and reflect the approximate performance of iMac Pro and iMac.
5. Testing conducted by Apple in November 2017 using preproduction 3.0GHz 10-core Intel Xeon W-based 27-inch iMac Pro systems with 64GB of RAM configured with Radeon Pro Vega 64 graphics with 16GB of HBM2; and 4.2GHz quad-core Intel Core i7-based 27-inch iMac systems with Radeon Pro 580 graphics with 8GB of VRAM. OsiriX MD v.9.0.1 tested using a CT scan dataset with 1300 slices of 512 x 512 voxels. Performance tests are conducted using specific computer systems and reflect the approximate performance of iMac Pro and iMac.
6. Testing conducted by Apple in November 2017 using preproduction 2.3GHz 18-core Intel Xeon W-based 27-inch iMac Pro systems with 128GB of RAM and preproduction 3.0GHz 10-core Intel Xeon W-based 27-inch iMac Pro systems with 64GB of RAM, both configured with Radeon Pro Vega 64 graphics with 16GB of HBM2; and 4.2GHz quad-core Intel Core i7-based 27-inch iMac systems with Radeon Pro 580 graphics with 8GB of VRAM. Tested using Mathematica v11.2.0.0 with built-in benchmark, WolframMark. Performance tests are conducted using specific computer systems and reflect the approximate performance of iMac Pro and iMac.
7. Testing conducted by Apple in November 2017 using preproduction 2.3GHz 18-core Intel Xeon W-based 27-inch iMac Pro systems with 128GB of RAM and preproduction 3.0GHz 10-core Intel Xeon W-based 27-inch iMac Pro systems with 64GB of RAM, both configured with Radeon Pro Vega 64 graphics with 16GB of HBM2; and 4.2GHz quad-core Intel Core i7-based 27-inch iMac systems with Radeon Pro 580 graphics with 8GB of VRAM. Adobe Photoshop 19.0 tested using the crystallize, pointillize, radial blur, shape blur, dust & scratches, and median filters. Performance tests are conducted using specific computer systems and reflect the approximate performance of iMac Pro and iMac.
8. Testing conducted by Apple in November 2017 using preproduction 2.3GHz 18-core Intel Xeon W-based 27-inch iMac Pro systems with 128GB of RAM configured with Radeon Pro Vega 64 graphics with 16GB of HBM2; and 4.2GHz quad-core Intel Core i7-based 27-inch iMac systems with Radeon Pro 580 graphics with 8GB of VRAM. Prerelease Pixelmator Pro 1.0.1 tested using a 3.31GB image. Performance tests are conducted using specific computer systems and reflect the approximate performance of iMac Pro and iMac.
9. Testing conducted by Apple in November 2017 using preproduction 2.3GHz 18-core Intel Xeon W-based 27-inch iMac Pro systems with 128GB of RAM and preproduction 3.0GHz 10-core Intel Xeon W-based 27-inch iMac Pro systems with 64GB of RAM, both configured with Radeon Pro Vega 64 graphics with 16GB of HBM2; and 4.2GHz quad-core Intel Core i7-based 27-inch iMac systems with Radeon Pro 580 graphics with 8GB of VRAM. Prerelease Logic Pro X 10.3.3 used for an offline bounce of 20 audio tracks from a project to disk in PCM format. Performance tests are conducted using specific computer systems and reflect the approximate performance of iMac Pro and iMac.
10. Testing conducted by Apple in November 2017 using preproduction 2.3GHz 18-core Intel Xeon W-based 27-inch iMac Pro systems with 128GB of RAM and preproduction 3.0GHz 10-core Intel Xeon W-based 27-inch iMac Pro systems with 64GB of RAM, both configured with Radeon Pro Vega 64 graphics with 16GB of HBM2; and 4.2GHz quad-core Intel Core i7-based 27-inch iMac systems with Radeon Pro 580 graphics with 8GB of VRAM. Tested using prerelease Logic Pro X 10.3.3 with project consisting of 200 Sculpture synthesizer tracks. Individual tracks were enabled during playback until CPU became overloaded. Performance tests are conducted using specific computer systems and reflect the approximate performance of iMac Pro and iMac.
11. Testing conducted by Apple in November 2017 using preproduction 2.3GHz 18-core Intel Xeon W-based 27-inch iMac Pro systems with 128GB of RAM and preproduction 3.0GHz 10-core Intel Xeon W-based 27-inch iMac Pro systems with 64GB of RAM, both configured with Radeon Pro Vega 64 graphics with 16GB of HBM2; and 4.2GHz quad-core Intel Core i7-based 27-inch iMac systems with Radeon Pro 580 graphics with 8GB of VRAM. Tested with prerelease Final Cut Pro 10.4 using a complex 63-second project with a variety of media up to 8K resolution. Performance tests are conducted using specific computer systems and reflect the approximate performance of iMac Pro and iMac.
12. Testing conducted by Apple in November 2017 using preproduction 3.0GHz 10-core Intel Xeon W-based 27-inch iMac Pro systems with 64GB of RAM configured with Radeon Pro Vega 64 graphics with 16GB of HBM2; and 4.2GHz quad-core Intel Core i7-based 27-inch iMac systems with Radeon Pro 580 graphics with 8GB of VRAM, configured with 64GB of RAM. Tested with prerelease Compressor 4.4 using a 30-second project with Apple ProRes 422 video at 4096×2160 resolution and 30 frames per second. Performance tests are conducted using specific computer systems and reflect the approximate performance of iMac Pro and iMac.
13. 1GB = 1 billion bytes and 1TB = 1 trillion bytes; actual formatted capacity less.
Technical specifications are subject to change.
Software and content may be sold separately. Title availability is subject to change.
